Turkey’s tug output is showing no signs of a let-up, whether for domestic or overseas customers – and with Robert Allan Limited’s designs very much at the forefront for the steady stream of newbuilds.
A report published on Statista, titled Export value of tugs and pusher craft from Turkey between 2012 and 2023, claims that Turkey exorted new tugs and pushers to the value of just over US$416 million in 2023, representing an increase of nearly 36% on the previous year. The country has also been pioneered a number of eco-friendly tug firsts, designing vessels capable of running on alternative fuels. Examples include the 2014 launch of the twins Borgøy and Bokn, hailed as the first two pure-LNG-fuelled tugs in the world, and the 2020 delivery of the 18.7m ‘zero emissions electric tug’ (ZEETUG) by Navtek: a vessel powered by lithium-ion batteries.
One major Turkish player is Uzmar, originally founded in 1972 as a pilotage and towage services firm, before coming to build tugboats for its own requirements from 1993. In February this year, the builder delivered the 32m x 13.2m tug TIGER to Italy-headquartered tug and barge operator Ocean SRL. This vessel will be used for operations including towing, pushing, firefighting, vessel escort, ship rescue and stand-by duties. Uzmar says that it managed to complete TIGER just eight months after the contract with Ocean SRL was signed.
TIGER was built to the specs of the RAstar 3200 class, provided by Canadian naval architect Robert Allan Limited (RAL). RAL’s tug designs – including the RAstar, RAmparts and VectRA series (and their offshoots) – have proven popular with Turkish shipbuilders such as Uzmar, Sanmar and Med Marine, covering a range of applications, from harbour towing to offshore support.
TIGER features a depth of 5.5m and has a the capacity to store 199m3 of fuel and 40m3 of fresh water. The tug is powered by twin Caterpillar 3516E main engines, each rated 2,350bkW at 1,800rpm and featuring IMO Tier III-certified aftertreatment systems. Propulsion-wise, the vessel is fitted with two Kongsberg US255 Z-drives with 2.8m fixed-pitch propellers, while deck equipment includes an Ibercisa split drum escort forward winch, an aft towing winch and a towing pin, supplied by Data Hidrolik, to support vessel escorting and towing operations. Uzmar reports that TIGER has a bollard pull capacity of 80tonnes and carries the class notations Escort Tug, Recovered Oil Second Line (FP>60°C) and Firefighting 1.
Uzmar is now working on a battery-methanol tug for port and terminal services supplier Svitzer, scheduled for handover in the second half of 2025. The tug will incorporate a 6MWh battery, manufactured by AYK Energy, to assist it in providing zero-emissions escort tug duties in the Port of Gothenburg. This vessel is based on Svitzer’s TRAnsverse design – which, as the name implies, features additional design input from RAL. AYK Energy explains: “The battery will be supported by dual-fuel methanol engines for back-up and range extension. The escort duty tug is expected to conduct more than 90% of its operations using its battery-electric powertrain.”
The 806gt vessel will feature an overall length of 34.9m, a bollard pull ahead of 85tonnes and the capability to reach speeds up to 14knots. It will also utilise escort steering and braking forces, rated 150tonnes and 200tonnes respectively, measured at 10knots.

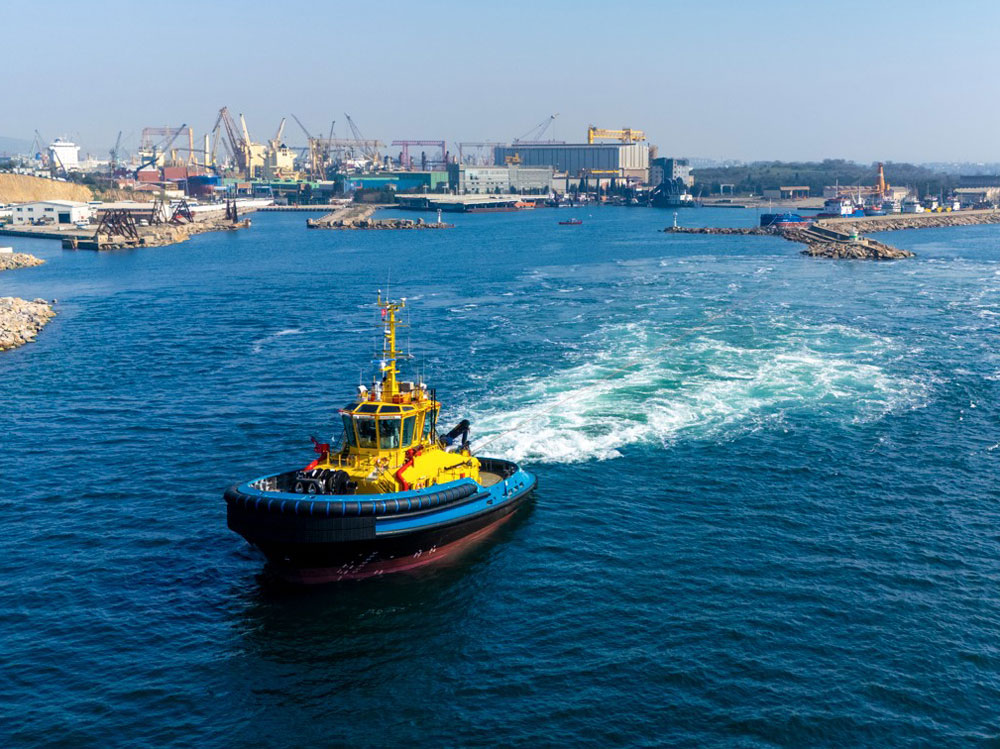

Sanmar has completed sea trials for the third fully electric tugboat it has constructed for SAAM Towage
Meanwhile, Turkish builder Sanmar Shipyards recently completed the sea trials for the third fully electric tugboat constructed for SAAM Towage. Sanmar has stated that the newbuild effectively constitutes “the first fully electric tugboat to operate in Latin America”, as well as marking the eighth all-electric newbuild produced by Sanmar,
The builder adds that it has another six fully electric tugboats under construction at its facility in Tuzla. The newcomer follows the ElectRA 2300-class tugs SAAM Volta and Chief Dan George, which Sanmar delivered to SAAM Canada in Q4 2023, for operations in the Port of Vancouver (see Significant Small Ships of 2023).
This latest launch is based on RAL’s ElectRA 2500SX design, provided to Sanmar on an exclusive basis. The boat features an overall length of 25.4m, a 12.86m beam and a draught of 5.6m, and has a maximum battery capacity of 3,616kWh. Rüçhan Çıvgın, commercial director of Sanmar Shipyards, says: “It was extremely important, when we were developing the ElectRA series with RAL and [battery manufacturer] Corvus Energy, that the move to electricity and other alternative fuels should not come with any loss of power or performance.” According to the partners, the ElectRA 2500SX exhibits a bollard pull of at least 70tonnes and a speed of 12.5knots – which certainly seems to have pleased the operator.
For the full in-depth feature, see the April 2025 issue of The Naval Architect
